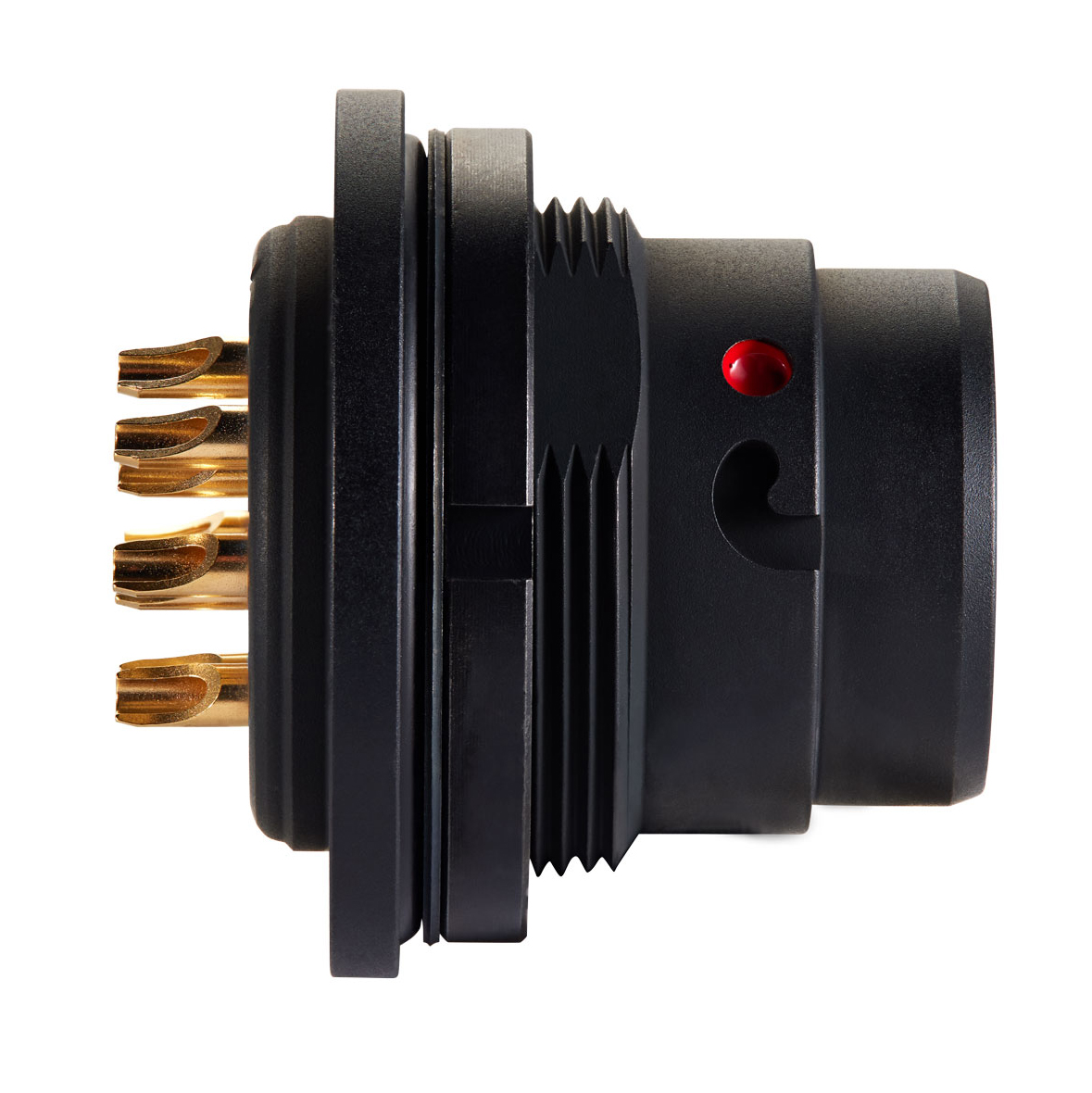

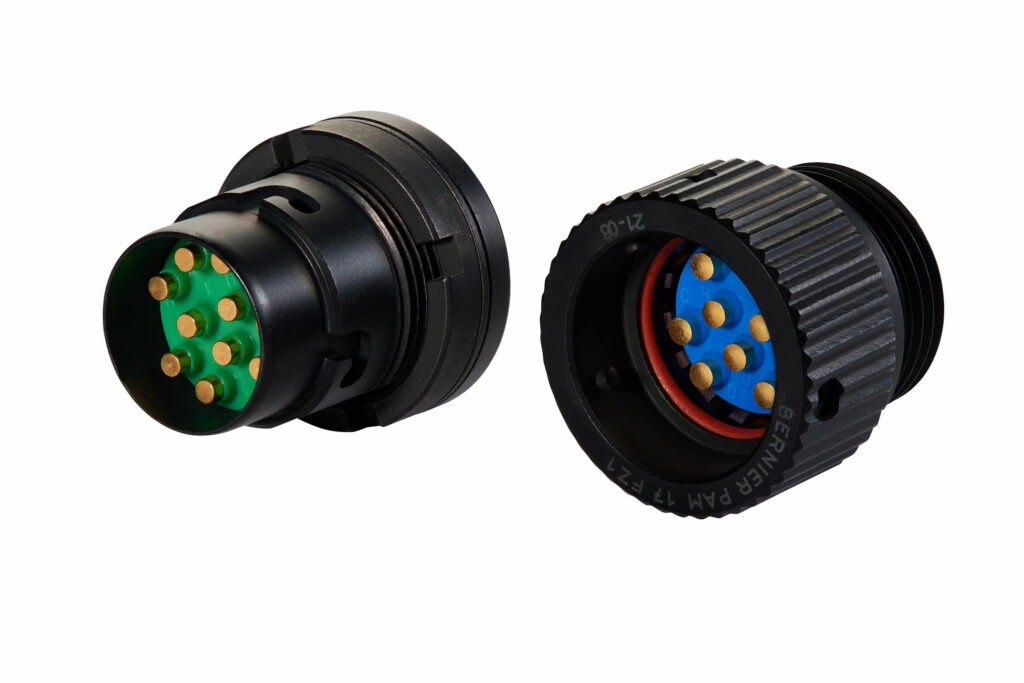

PAM connector — bayonet locking, stainless steel, VG95351 & VG96394 compatible
• BAYONET LOCKING • VG95351 & VG96394 COMPATIBLE • EMI/RFI 360° SHIELDING
The PAM is a stainless steel bayonet connector designed for military radios, intercommunication systems, and tactical modems, with additional use in aeronautics applications. IP68 sealed and rated from -55°C to +85°C, it provides reliable electrical connections for tactical communication equipment and onboard systems where secure locking, signal integrity, and corrosion resistance are essential.
VG95351 & VG96934 compatible connector for land defense
The PAM’s bayonet locking mechanism provides a fast, secure connection that resists vibration-induced loosening, a key requirement in land defense environments. Available in three contact configurations, it covers a range of signal and power requirements for military radios, intercommunication systems, and tactical modems. Its stainless steel shell and 360° EMI/RFI shielding ensure signal integrity in demanding electromagnetic environments, on the ground as well as in aeronautics.
MECHANICAL AND CLIMATIC CHARACTERISTICS
| Locking | Bayonet |
| Operating temperature | -55°C to +85°C |
| Nbr of mating-unmating cycles | Up to 5000 cycles |
| Sealing | IP68 connected and disconnected |
| Corrosion resistance (Salt spray) | Stainless steel : 96 hours |
| Fluid resistance | Hydrocarbon and oils |
ELECTRICAL CHARACTERISTICS
| PAM 07 | PAM 17 | PAM 10 | |
| Nbr. of contacts | 7 | 10 | 10 |
| Gauge - AWG | 20 | 22 | 20 |
| Types of contacts | PCB pins or solder cup | ||
| Operating voltage | 42V max 30mV min | 100Vmax 30mVmin |
|
| Current rating per contact | 500m A max 30 µA min | 1,5 A max 30 µA min |
|
| Contact resistance | ≤ 20 mΩ à 25°C | ||
| Insulating resistance | > 5000 MΩ | ||
| Crosstalk | 80 dB at 20 kHz | ||
| Dielectric strength | 500 Vca, 50 Hz | ||
| EMI RFI Protection | Yes | ||
MATERIALS
| Connector shell | Stainless steel |
| Connector shell plating | Sandblasting or Black Chrome |
| Insert | Thermosetting |
| Contacts | Copper alloy plated with gold overnickel |
| Shielding ring | Beryllium copper |
| Backshell | Aluminum |
| Backshell plating | Black chrome or Black anodizing |
APPLICATIONS
- Military radios, intercommunication systems, and tactical modems
- Military aeronautics: pilot headset interfaces, cockpit audio and communication
- Ground support equipment
- Land and airborne platforms requiring vibration-resistant bayonet connections
